Use in Different Industries Like
Pharmaceutical / Chemical / Dairy / Food Processing / Oil / Paint / Beverages / Distillation

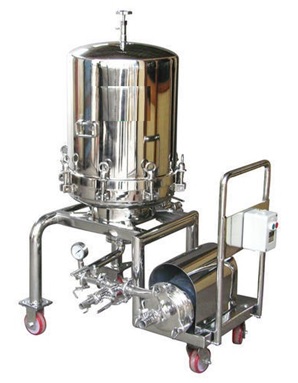

The SHAKTI Filter Press – Zero Hold Up Type SFP is of zero hold up filter press that is made up of high quality stainless steel having customized finished design. The cartridge assembly consists of plates, perforated screens, spacers and filter media stands on S.S. trolley.
| Model No. | Dia Of Plates (Inches) | No. Of Plates | Heights Of Plates (mm) | Filtration Area (Sq. Mtr.) | Cake Holding Capacity (rf^) | Flow Rate ~ (ltrs/hr) | Size of Pump | Motor (hp) |
|---|---|---|---|---|---|---|---|---|
| SFP84 | 8 | 4 | 25 | 0.132 | 2.5 | 300 | 0.5" | 1.0 |
| SFP86 | 8 | 6 | 25 | 0.198 | 3.9 | 400 | 0.5" | 1.0 |
| SFP88 | 8 | 8 | 25 | 0.254 | 4.95 | 500 | 0.5" | 1.0 |
| SFP144 | 14 | 4 | 38 | 0.378 | 12.9 | 700 | 1.0" | 2.0 |
| SFP146 | 14 | 6 | 38 | 0.567 | 17.2 | 1200 | 1.0" | 2.0 |
| SFP148 | 14 | 8 | 38 | 0.756 | 23.5 | 1600 | 1.0" | 2.0 |
| SFP1410 | 14 | 10 | 38 | 0.924 | 27.5 | 2000 | 1.0" | 2.0 |
| SFP1412 | 14 | 12 | 38 | 1.156 | 29.95 | 2300 | 1.0" | 2.0 |
| SFP188 | 18 | 8 | 50 | 1.27 | 47.0 | 2500 | 1.5" | 3.0 |
| SFP1810 | 18 | 10 | 50 | 1.62 | 54.2 | 3200 | 1.5" | 3.0 |
| SFP1812 | 18 | 12 | 50 | 1.842 | 67.2 | 4000 | 1.5" | 3.0 |
| SFP1815 | 18 | 15 | 25 | 2.27 | 37.5 | 5000 | 1.5" | 3.0 |
| SFP1818 | 18 | 18 | 25 | 2.72 | 50.0 | 5500 | 1.5" | 3.0 |
| SFP1818 | 18 | 18 | 50 | 2.77 | 100 | 5500 | 1.5" | 3.0 |
| SFP1823 | 18 | 23 | 25 | 3.45 | 57 | 6800 | 1.5" | 3.0 |
| SFP2412 | 24 | 12 | 50 | 3.37 | 110 | 6700 | 2.0" | 5.0 |
| SFP2415 | 24 | 15 | 50 | 4.21 | 123 | 7800 | 2.0" | 5.0 |
| SFP2418 | 24 | 18 | 38 | 5.04 | 130 | 10000 | 2.0" | 5.0 |
| SFP2423 | 24 | 23 | 38 | 6.34 | 165 | 12500 | 2.0" | 5.0 |
| SFP337 | 33 | 7 | 38 | 4.2 | NA | 8000 | 2.5" | 7.5 |
| SFP3310 | 33 | 10 | 38 | 5.6 | NA | 11000 | 2.5" | 7.5 |
| SFP3314 | 33 | 14 | 38 | 7.5 | NA | 15 000 | 2.5" | 7.5 |
| SFP3323 | 33 | 23 | 38 | 14.0 | NA | 25000 | 2.5" | 7.5 |
