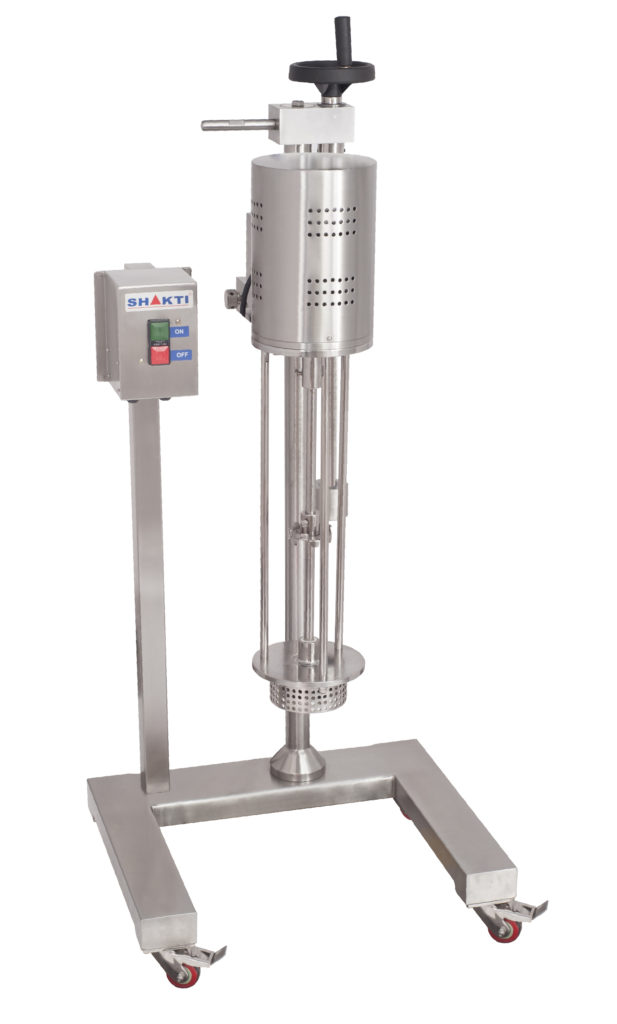

Homoginizer Stirrer - R & D Model (SHO)

About Homoginizer Stirrer – R & D Model (SHO)

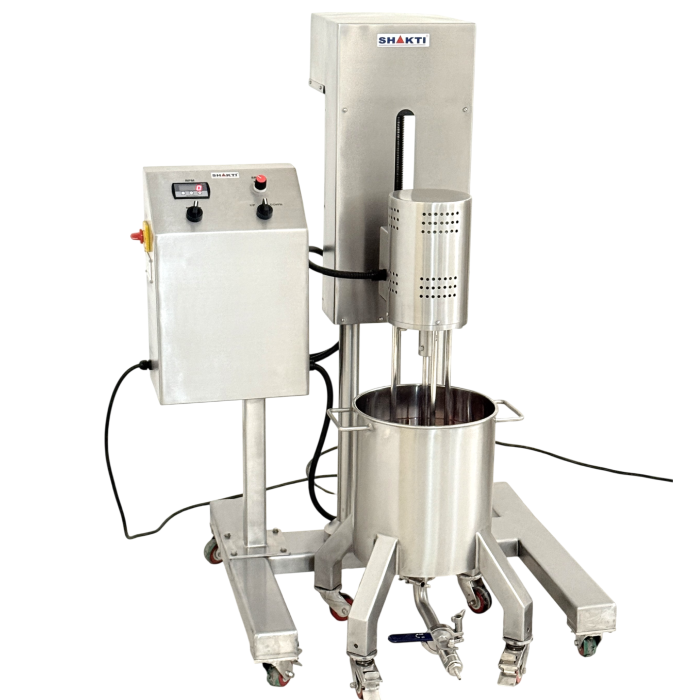

The SHAKTI Homogeniser Type SHO are designed for homogenization, emulsification, dispersion, suspending, solubilizing, milling, disintegrating solids and mixing fluids at high speed.

The equipment consists of stator and rotor assembly made of SS 316L. The rotor moves inside the stator, the stator is provided with hole/slots and the material passes through these hole/slots several times and thus size reduction and homogenisation is obtained.

Make An Inquiry

Detailed Specification for Homoginizer Stirrer – R & D Model (SHO)

Technical Specifications
Salient Features

Model	Motor HP	RPM	Mixing Capacity
SHO-0/25	0.25	2800	12 L
SHO-0/5	0.5	2800	25 L
SHO-1	1	2800	100 L
SHO-2	2	2800	200 L
SHO-3	3	2800	250 L
SHO-4	1	2800	100 L

Stand with adjustable height arrangements.
Rotor shaft is directly coupled to motor
All contact parts are made out of 316 quality material.
Maximum care has been taken to ensure safe operation of the unit.
Motor: 1/2HP, 1 HP, 2 HP, 3 HP, 5 HP.
Mixing capacities vary according to the process material, viscosity, shape of vessel.
