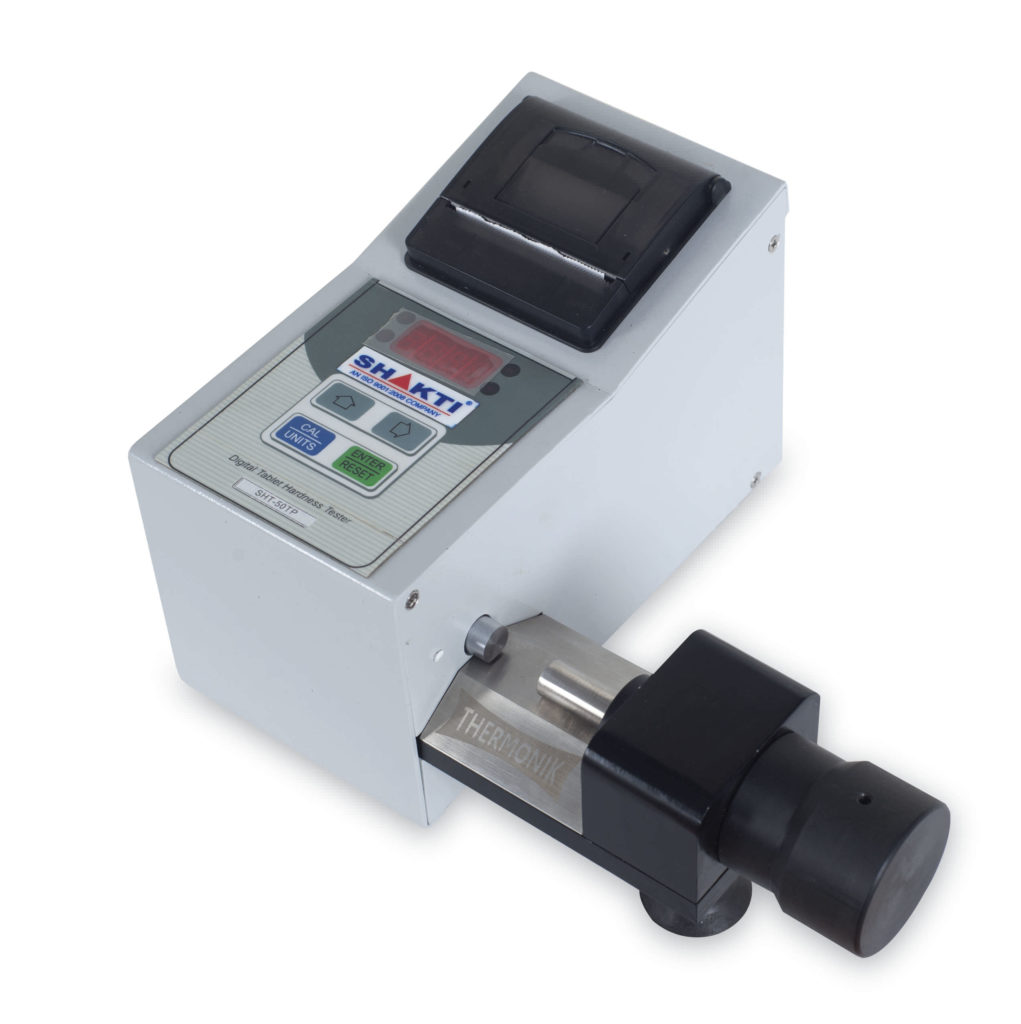

About Manual Tablet Hardness Tester (SHT-20TP)

Salient Features

  • Very compact, simple & Easy to operate.
  • Cost Effective
  • Selectable units of measurement like Kilopond (kp), Newton (N), Pound (lb or lbm), Strong Cobb (SC)
  • Microprocessor based reading of measurement.
  • Easy to calibrate.
  • In-Built Thermal Printer.
  • Statistical Data for the Maximum, Minimum & Mean Values are printed for the Tablet Tested at the End of the Test IQ/OQ Documents

Detailed Specification for Manual Tablet Hardness Tester (SHT-20TP)

  • Technical Specifications
  • Description
TYPESDETAILS
Hardness Range5 N to 500 N
Accuracy0.1 N
Resolution0.1 N/0.01 kp.
Tablet SizeUp to 44 mm
Display4 Digit LED Display, Indicator LED's For Selecting Units
Power230V AC ~ 50 Hz 2A
SR. NO.STANDARD ACCESSORIESQTY.
1Debris Collecting Tray2 Nos.
2Cleaning Brush2 Nos.
3Mains Cord12 Nos.
4Allen Key1 No.
5Screw Driver1 No.
6Calibration Plate1 No.
7Operating Manual1 No.
8Thermal paper roll1 No.
95 Kg Certified weight for calibration (Optional)1 No.
