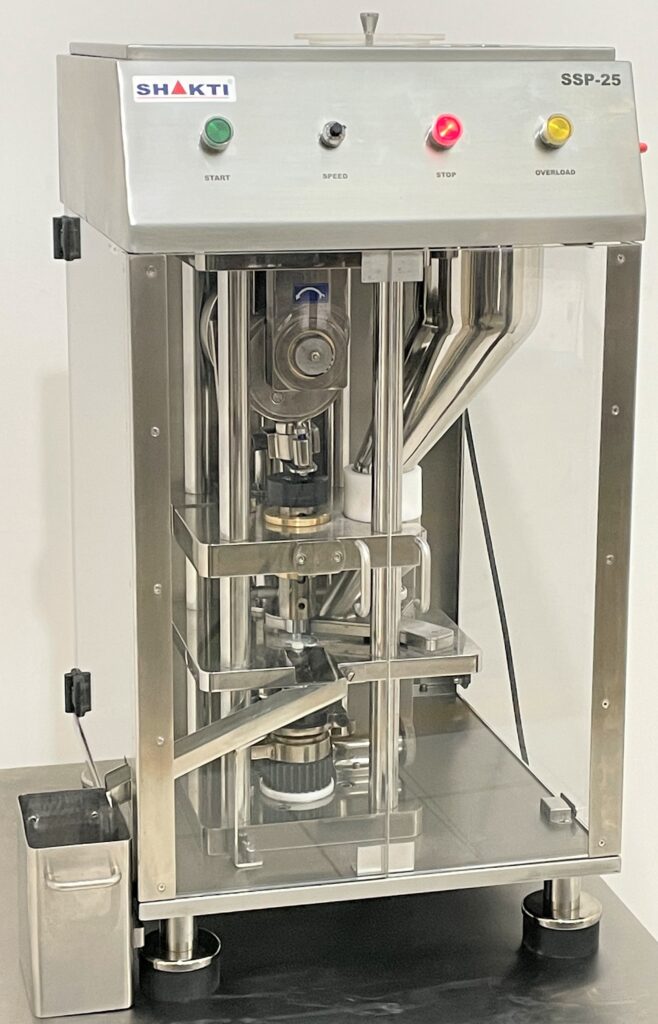

About Single Punch Tablet Press – Model (SSP-25)

For the development and small batch production of tablets, SHAKTI developed the single punch tablet press SSP with advanced technologies, single punch tablet machine can press round or irregular tablets from various and odd-shaped products. It operates automatically, i.e. the tablets are filled, pressed and ejected continuously.

Its feature; are high precision of filling, low noise, low consumption of material, and it works smoothly. The minimum consumption of lab material is just 200gm. Single Punch Tablet Press is a good machine for research & development in labs at hospitals and plants, used for small-scale production. All components are either covered with hard chrome plating or made of stainless steel AISI 316L or acrylic glass.

Detailed Specification for Single Punch Tablet Press – Model (SSP-25)

  • Technical Specifications
  • Salient Features
  • Utilities

Model

SSP - 25

Punch Heads

1

Output Tablet / hr

3600

Tablet Dia - Max

25 mm - Round

Depth of fill

18 mm

Tablet thickness

0.5 - 8 mm

Compression force

50 kn (5 ton)

Electric Motor

1.5 Kw

Machine Dimension

530 x 610 x 955 mm

Machine Dimensions with Table

710 X 710 X 1725mm

Net weight

230 kg

Gross weight

290 kg

Note:

  • Electric voltage & frequency can be provided as per customer’s requirement to specify while placing an order.
  • All major Electrical components are CE approved.

Optional:

  • Special Table with Castors.



  • Compact Design – Ideal for smaller Lab Areas.
  • Entirely enclosed structure of the machine is design to avoid cross dust pollution, meet the GMP.
  • Low maintenance, easy-clean design.
  • Variable speed.
  • Simple to operate.
  • Non-contact parts and outer surface made from stainless steel corresponding to AISI 304.
  • Low Noise operation.
  • Easy changeable Die & Punch.
  • Sturdy Table Top design as per GMP standard.

Type

Details

Electric Supply

 220v, 50 Hz, Single phase  or  220v, 60 Hz, 3 phase

single punch machine
