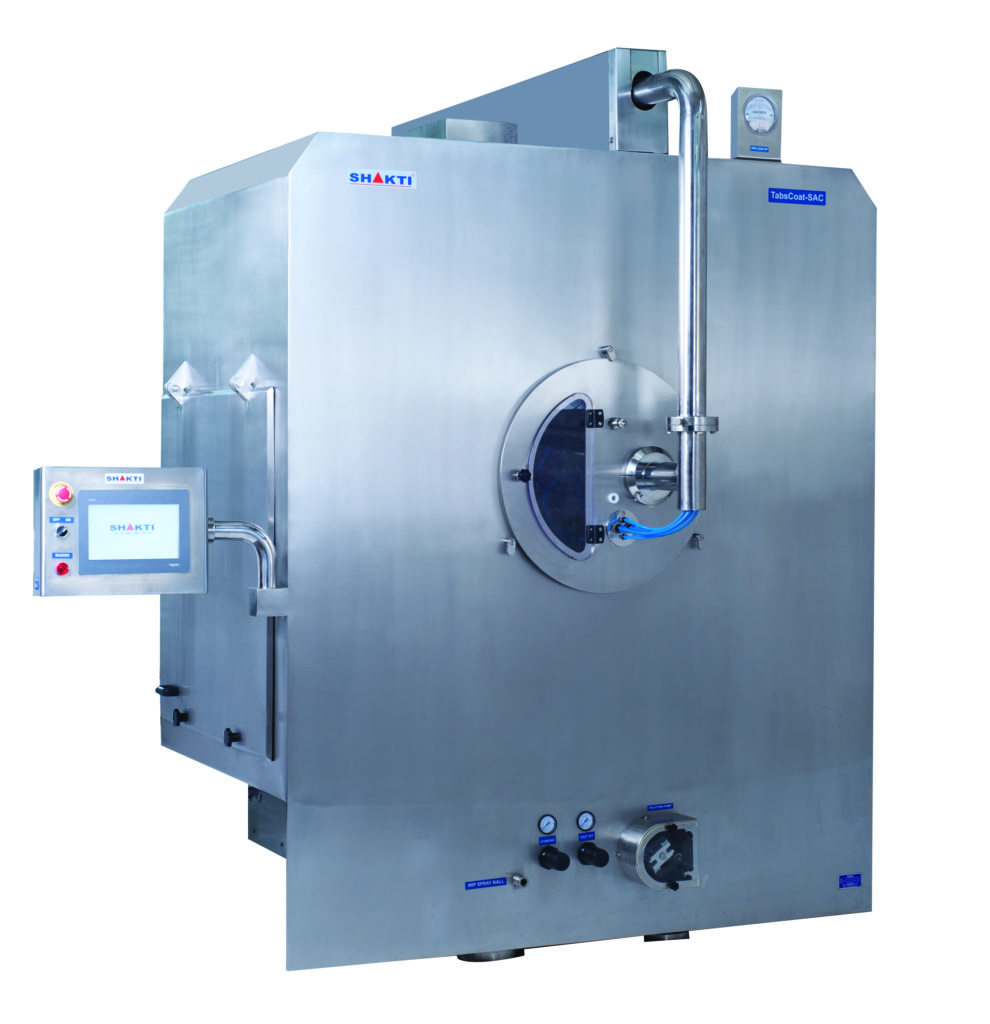

About Tablet Coater Tabscoat Polot Scale – (48″ & 60″) (SAC)

High Efficiency and Intelligent Coating Technology

TabsCoat – 48 Tablet Coater for is a fully integrated recipe driven production Scale tablet coating system is designed for the application of Film Coating & Sugar Coating.

Unfortunately we could not locate the table you're looking for.

Make An Inquiry

Detailed Specification for Tablet Coater Tabscoat Polot Scale – (48″ & 60″) (SAC)

Technical Specifications
Tablet Coater Tabscoat Pilot Scale
Standard Specifications Including

Design confirms CGMP Model.
All Operations fully automatic through PLC & color HMI.
Automation and controls- very precise, easy to use & record keeping compliant.
Contact parts all in AISI 316 & non contact parts in AISI 304.
Inbuilt Peristaltic pumps.
Quick release of Pan & Plenums to easy clean and less changeover time.
Anti-Bearding Spray nozzle – Make: Spraying Systems – USA
Differential Pressure indicator for Pan.
Food Grade seals in all doors & covers.
Pan Light is provided for illumination inside the pan.
Inbuilt (Wash in place) WIP system
Perforated drum electro polished.
Cabinet – standard double walled for better thermo-acoustic efficiency

The PLC Controller: All the Coating Process Parameters can be programmed via an Operator Interface (Touch Screen) and PLC.

This feature will have the following detailed components fitted on the various units.

ACVF Drive for the Pan, Inlet Air Blower and Exhaust Blower.
Temperature Sensor at Inlet air duck.
CFM sensor at inlet air duct.
Proxy sensor for Pan RPM
Spraying control.
Electrical logic circuit for on/off of the motors, pneumatic controls, heater controls and logic control of the sequence.
Pneumatic controls for the on/off of spraying sequence.
PLC control, integrating the electrical and pneumatic circuit with timer and logic based sequence.
Interlocks for the three motor sequence.
Air pressure interlock with spray system.
Heater interlock with blower.
