Tablet Disintegration Unit | R & D And Pilot Scale Equipments

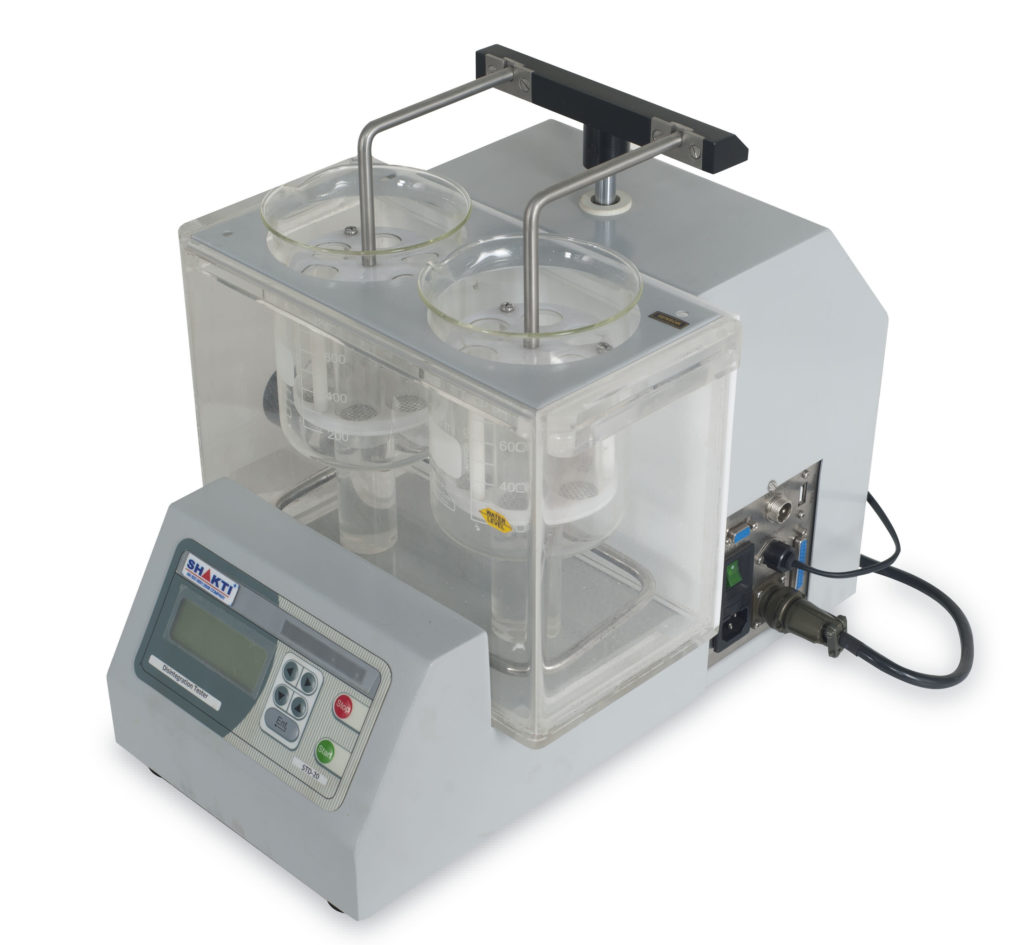

About Tablet Disintegration Unit (STD-20S)

Complies to all current USP, EP and other pharmacopoeia, Supports 2 test baskets & Quick release basket design, Compact, user-friendly operation, Connectivity with PC -Compatible keyboard for feeding product information, Selectable type of Disintegration: normal basket suppository basket, Incorporated the Code of Federal Regulations (21 CFR Part 11) feature of password protection (3 level ADMIN, SUPERVISOR and USER Password)

Temperature : Ambient to 50°C
Accuracy : Better than ±0.3°C

Make An Inquiry

Detailed Specification for Tablet Disintegration Unit (STD-20S)

Technical Specifications
Salient Features

TYPE	DETAILS
Temperature	Ambient to 50°C
Accuracy	Better Than ±0.3°C
Resolution	0.1°C.
Timer Range	00:00:01(hrs:min:sec) to 99:59:59 (hrs:min:sec)
Stroke / Min	Stroke Height 55mm, 30 Strokes / Min
Water Bath	Approx.7 liters
Power	230V AC ~ 50 Hz 2A or 110V AC ~ 60 Hz 2A

Complies to all current USP, EP and other pharmacopoeia
Supports 2 test baskets & Quick release basket design
Compact, user-friendly operation
Splash-proof membrane keypad
20 x 4 LCD screen with backlit
Connectivity with PC -Compatible keyboard for feeding product information
Selectable type of Disintegration: normal basket / suppository basket
Auto parking of baskets at top position
Online validation of strokes per minute
Safety features
Bath Illumination for better visibility
Validation protocol
Incorporated the Code of Federal Regulations (21 CFR Part 11) feature of password protection (3 level ADMIN, SUPERVISOR and USER Password)
External probe for Beaker temperature validation
IQ/OQ Documents

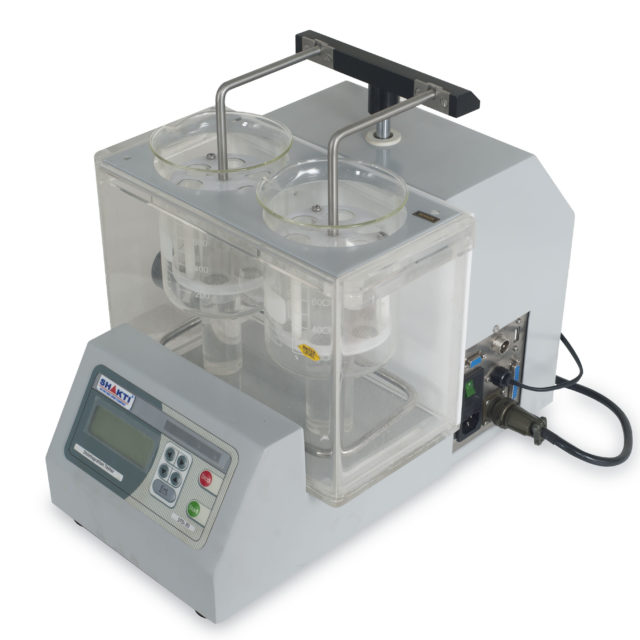

Tablet Disintegration Unit (STD-20S)
